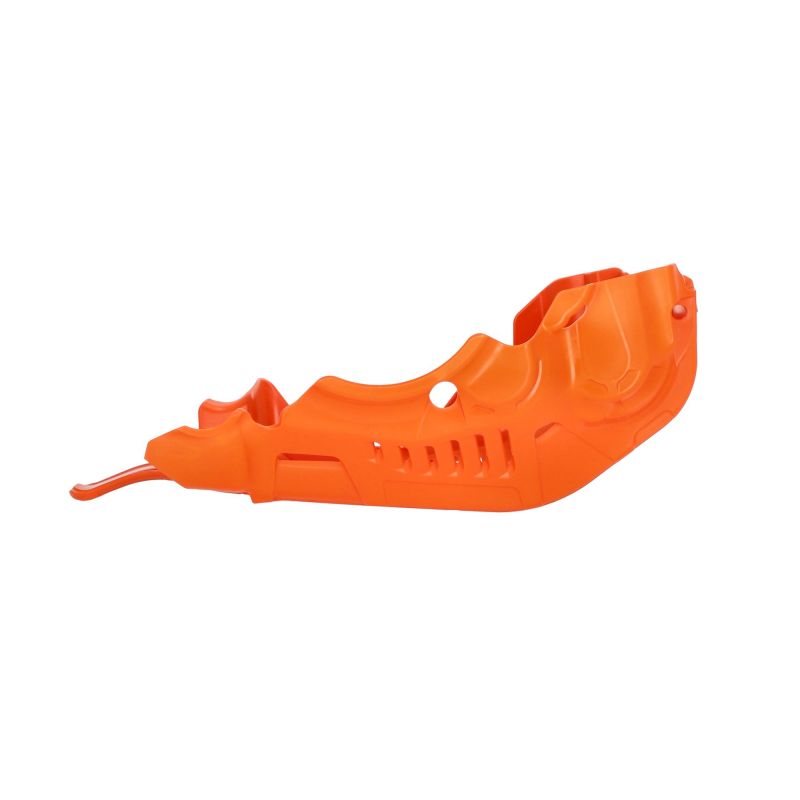

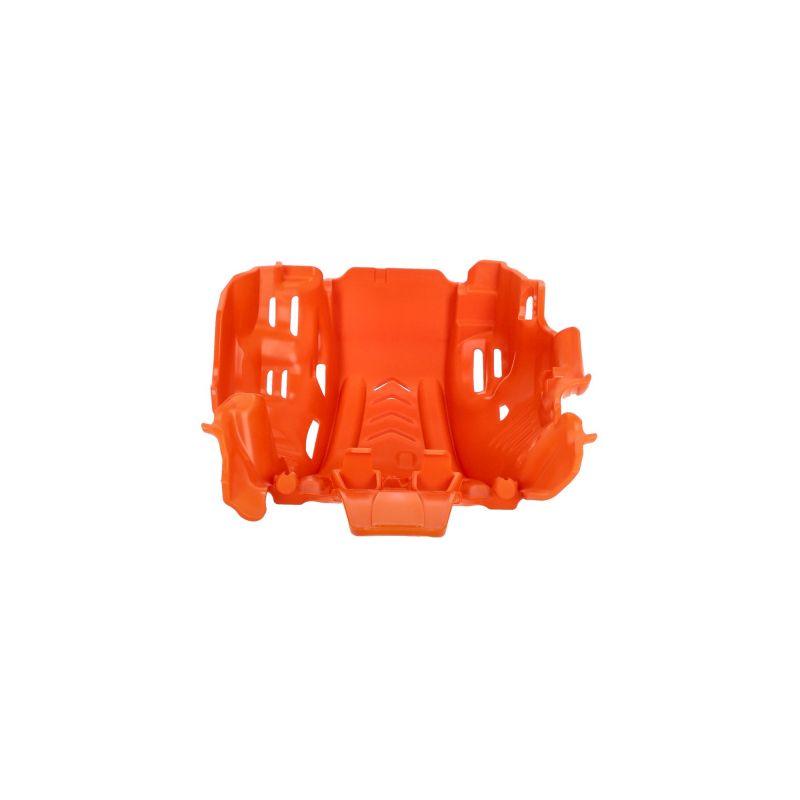

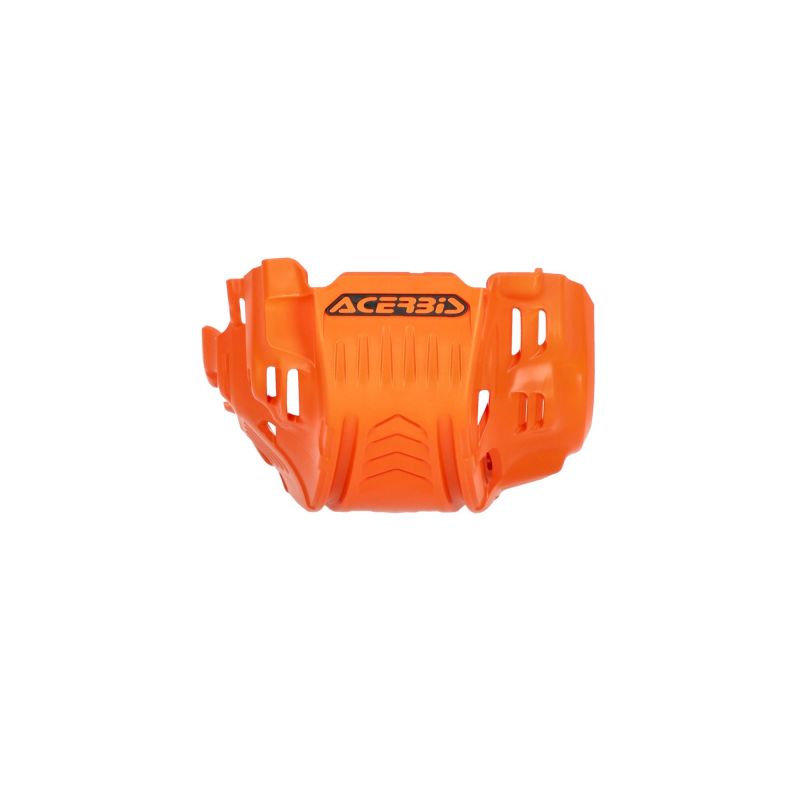

SKID PLATE FOR KTM/HUSQVARNA/GAS GAS 011.016 - Orange 016 KTM 690 SMC R 2019-2024

• Latest generation skid plate with integrated fin
• Fin designed to protect the linkage of the shock from impacts, mud and sand. It allows you to easily slide over natural obstacles (Whoops, stones, logs) ensuring a smooth ride. The design ensures maximum adherence to the link
• It offers maximum protection to the chassis and motor.
• Extended protection areas on the side housings, on the water pump and in the chassis areas
• Presence of exhaust areas to give more lightness, ventilation and facilitate the washing operations inside the skid plate
• Design designed to reduce the ingress of mud and debris
• Protection of the side housings, on the water pump and in the areas of the chassis
• Easily mounts thanks the front holes and the original rear seats, with the addition of an additional support guaranteed by two plastic hooks
• Two-tone label with logo

011.016 - Orange 016
KTM
690 SMC R
2019,2020,2021,2022,2023,2024

Mounting instructions

http://marketing.acerbis.it/products/attachments/500009052 VOLANTINO SOTTOMOTORE KTM 690.pdf

Attachments

MOUNTING INSTRUCTIONS
